PILE TESTING SERVICES

PILE TESTING SERVICES

On-site pile testing services including Pile Dynamic Test (PDA), Pile Static Load Test, Pile Integrity Test (PIT), Pile Lateral Load Test, Pile Pullout Test, and Pile Vertical Cyclic Load Test.

OFFICIAL 6 PILE TESTING SCOPE ITEMS

PILE TESTING SERVICES DIRECTORY

Pile Dynamic Test PDA ASTM D4945 / IS 2911

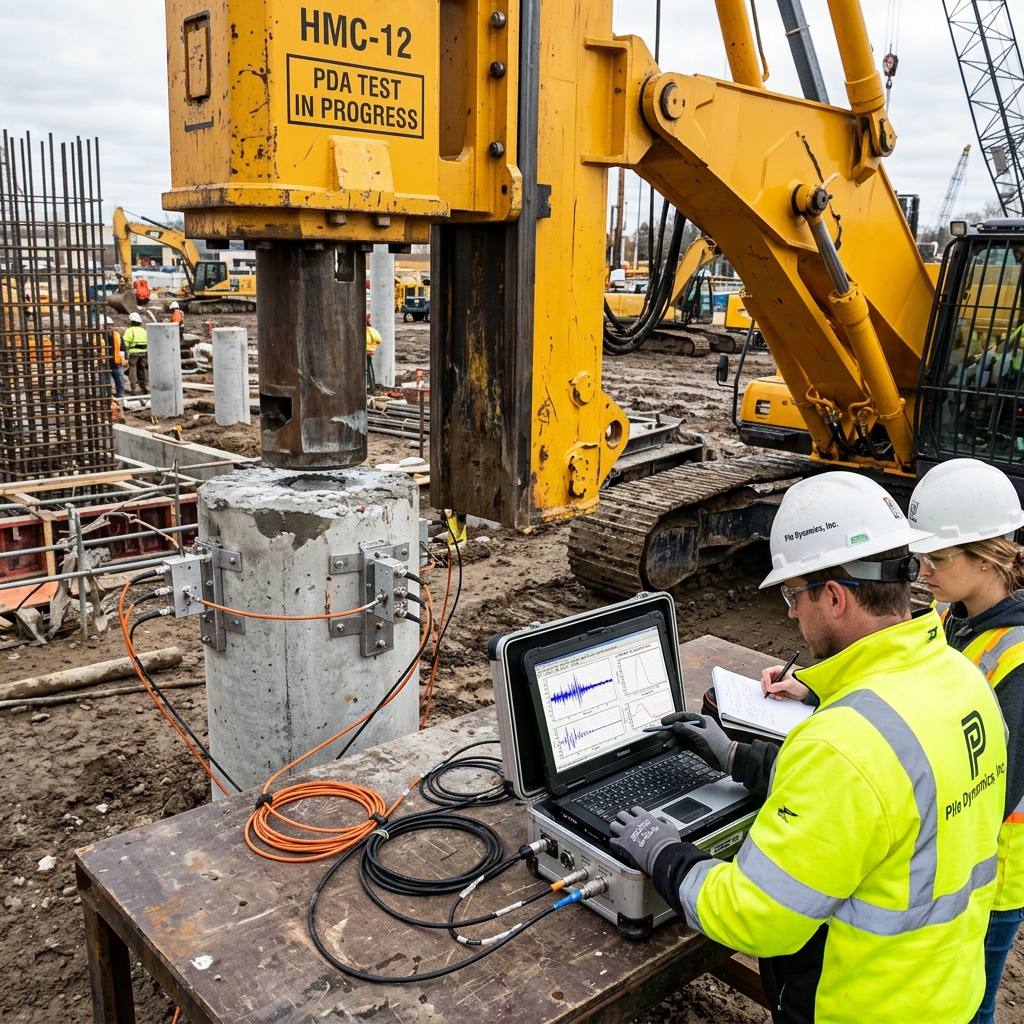

1. Pile Dynamic Test (PDA High Strain)

Instrumented High Strain Dynamic Pile Driving Analyzer (PDA) impact test to measure ultimate bearing capacity and skin friction distribution.

  • Ultimate & Safe Axial Load Bearing Capacity
  • CAPWAP Signal Matching Wave Equation Analysis
  • Skin Friction vs. End Bearing Resistance Breakdown
  • Structural Stress & Driving Hammer Efficiency
BOOK PILE DYNAMIC TEST →
Pile Static Load Test IS 2911 Part 4

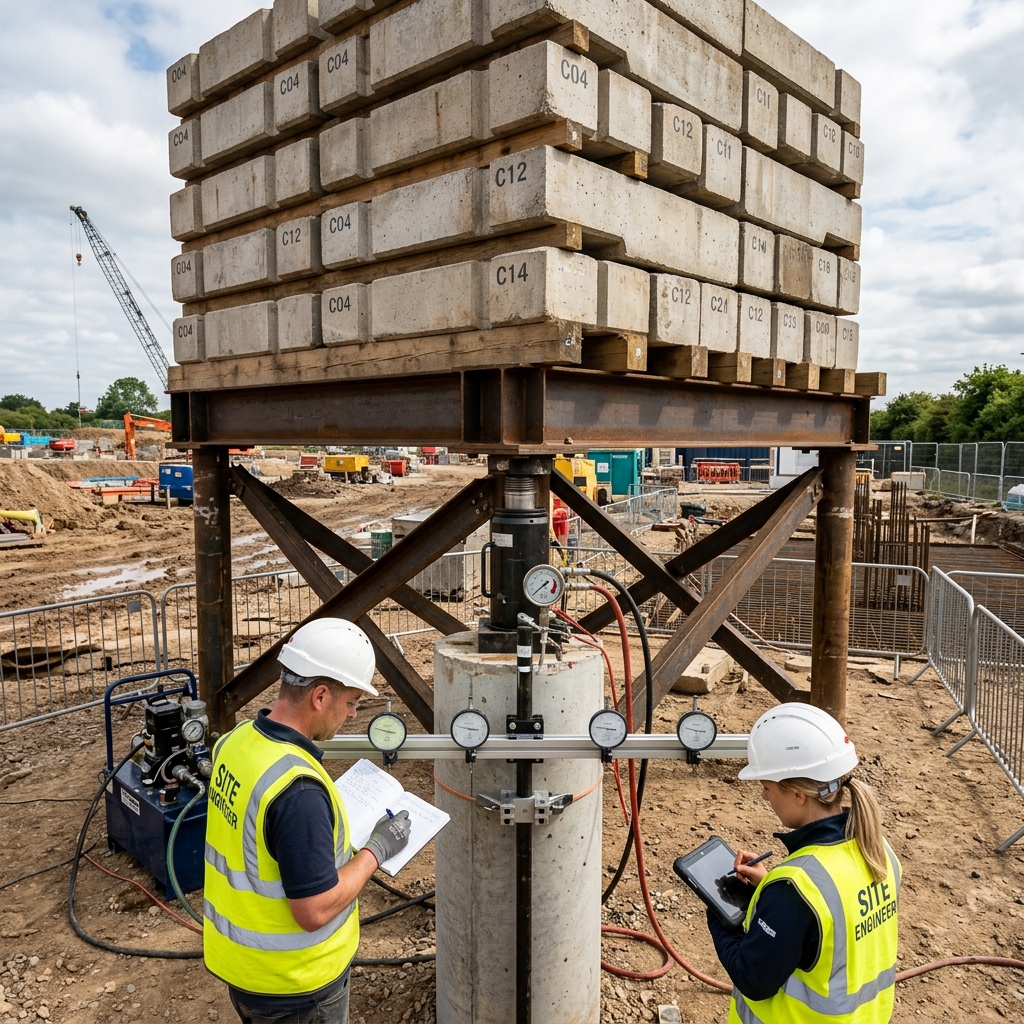

2. Pile Static Load Test

Initial and routine static vertical compression load testing on working piles using kentledge block ballast or anchor reaction piles.

  • Initial Load Test (Up to 2.5 Times Safe Load)
  • Routine Working Pile Acceptance Testing
  • Dial Gauge Micro-Settlement Tracking & Load-Settlement Curves
BOOK STATIC LOAD TEST →
Pile Integrity Test PIT ASTM D5882 / IS 2911

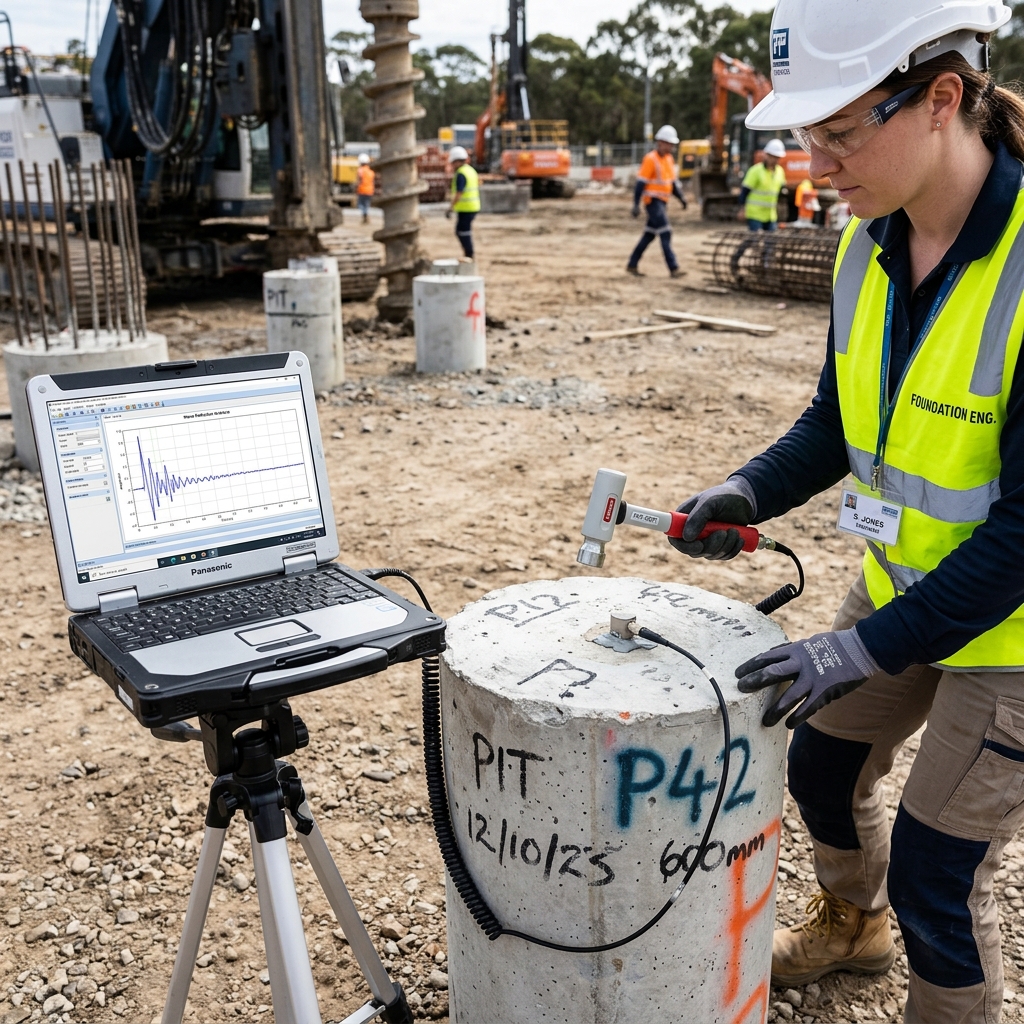

3. Pile Integrity Test (PIT Low Strain)

Low strain sonic echo wave reflection test to evaluate bored cast-in-situ concrete pile shaft continuity, length, and necking defects.

  • Pile Shaft Integrity & Continuity Verification
  • Defects, Necking, Bulging & Voids Detection
  • Estimated In-situ Pile Length Determination
BOOK INTEGRITY TEST →
Pile Lateral Load Test IS 2911 Part 4

4. Pile Lateral Load Test

Horizontal push/pull lateral deflection testing for piles subjected to wind, seismic, or wave lateral forces.

  • Horizontal Resistance & Lateral Deflection Curve
  • Safe Lateral Load Bearing Capacity Determination
  • Hydraulic Ram Jacking & LVDT Displacement Logging
BOOK LATERAL LOAD TEST →
Pile Pullout Test IS 2911 Part 4

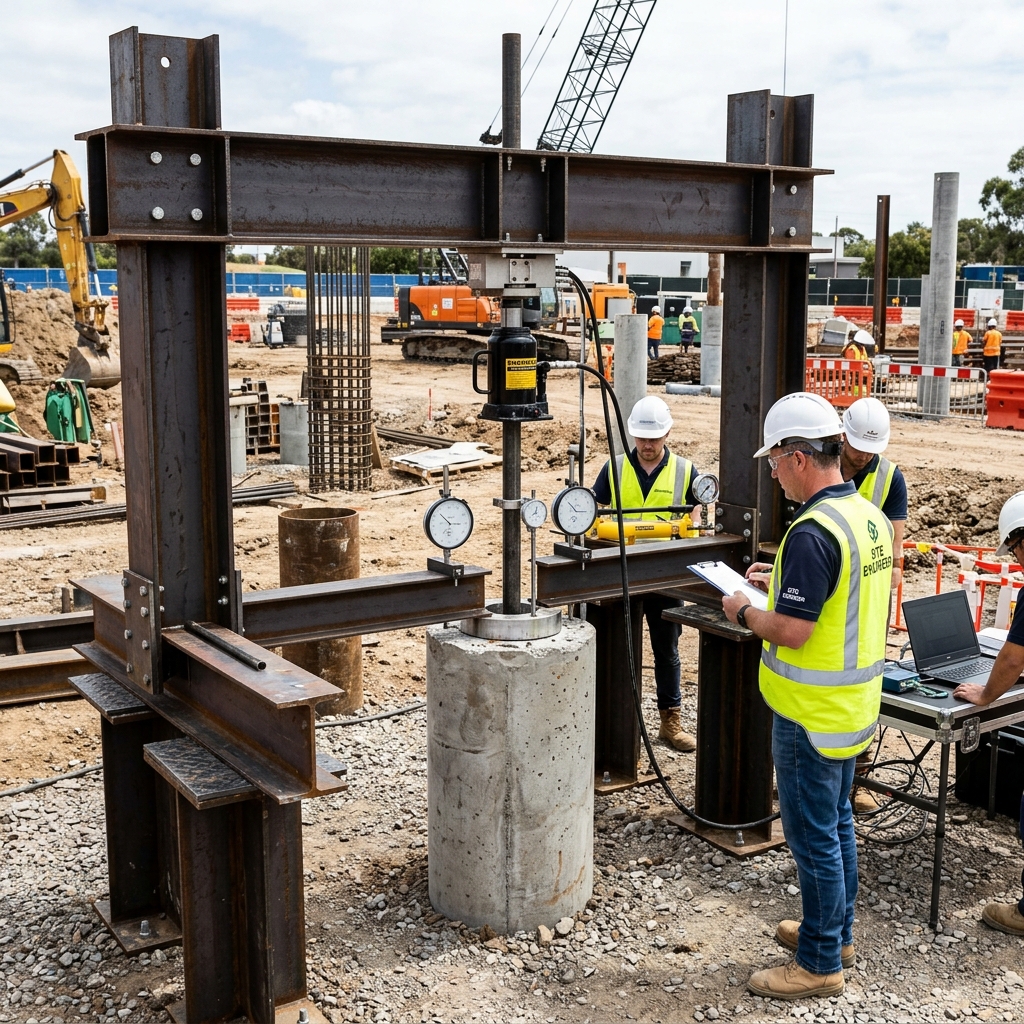

5. Pile Pullout Test (Tension Uplift)

Vertical tension uplift load testing for transmission tower foundations, tall chimneys, and basement uplift piles.

  • Tensile Uplift Capacity & Skin Friction Resistance
  • Upward Displacement vs. Tensile Load Tracking
  • Reaction Frame & Hydraulic Tension Jacking Setup
BOOK PULLOUT TEST →
Pile Vertical Cyclic Load Test IS 2911 Part 4

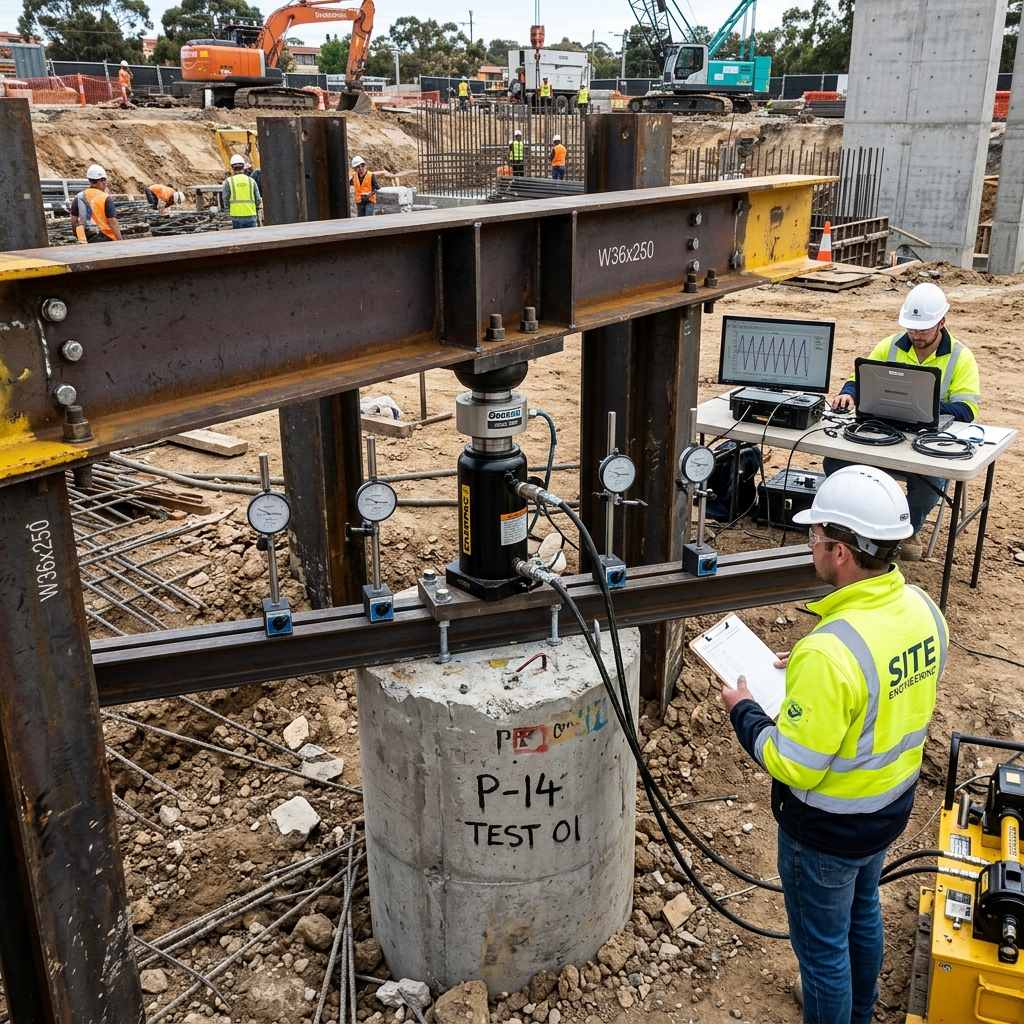

6. Pile Vertical Cyclic Load Test

Cyclic loading and unloading cycles to separate total pile resistance into point end bearing and skin friction components.

  • Separation of Skin Friction & End Point Bearing
  • Elastic Settlement vs. Plastic Settlement Breakdown
  • Cyclic Hydraulic Loading & Unloading Steps
BOOK CYCLIC LOAD TEST →

REQUIRE PILE LOAD TESTING ON YOUR PROJECT?

Deploy our high strain PDA analyzers, low strain PIT equipment, and calibrated hydraulic setups to your site with expert engineering reports.
